MSI Motherboard Secure Boot Guide - 03

This Guide applies to the following motherboards:

• PRO Z690-P DDR4 (MS-7D36)
• MPG Z690 EDGE TI WIFI DDR4 (MS-7D31)
• MAG B560M MORTAR (MS-7D17)
• MAG B460M MORTAR WIFI (MS-7C82)
• PRO Z690-A DDR4(MS-7D25)
• B360M MORTAR (MS-7B23)

Step 1: Accessing BIOS Settings

• Power on your PC and continuously press Delete to enter BIOS

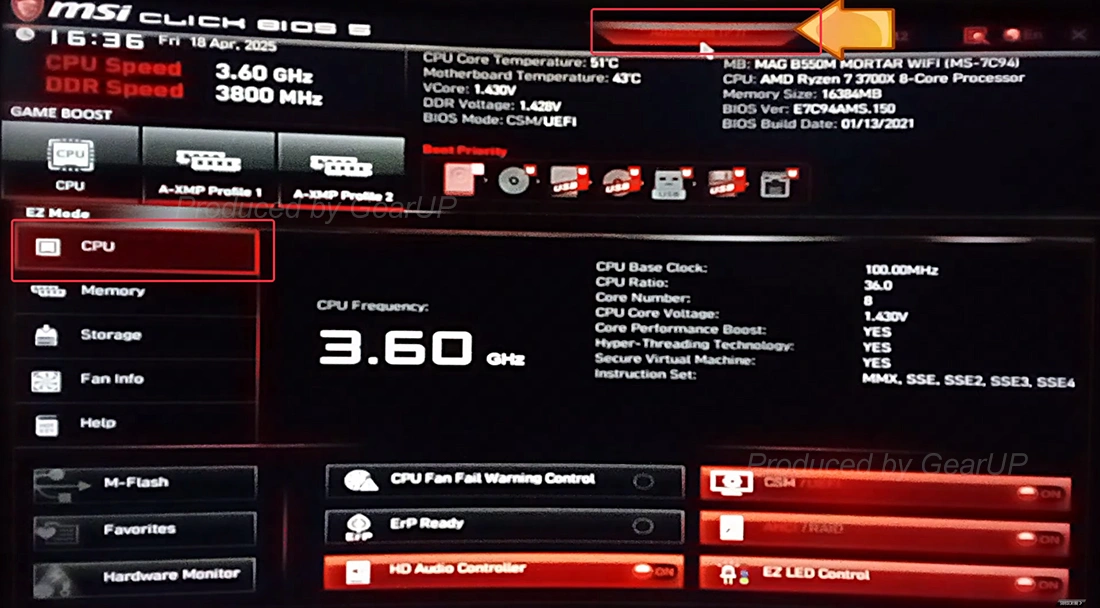

• Select Advanced Mode (or press F7)

Step 2: Navigating to TPM Settings

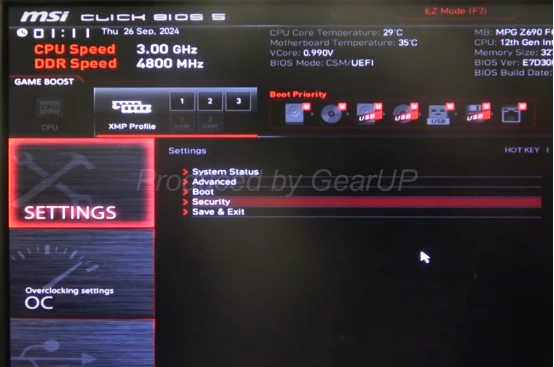

• Switch to Settings tab
• Select Security option

Step 3: Configuring TPM

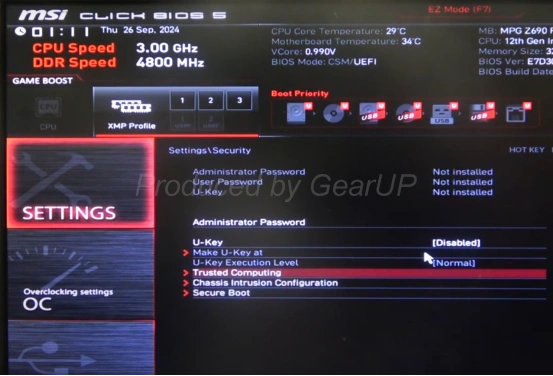

• Click Trusted Computing
• Set TPM Device Selection to fTPM 2.0

Step 4: Enabling Secure Boot - Initial Setup

• Go to: SETTINGS → Security → Secure Boot

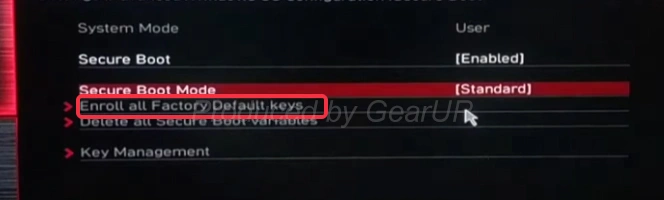

• Click Enroll all Factory Default keys

Step 5: Secure Boot Confirmation

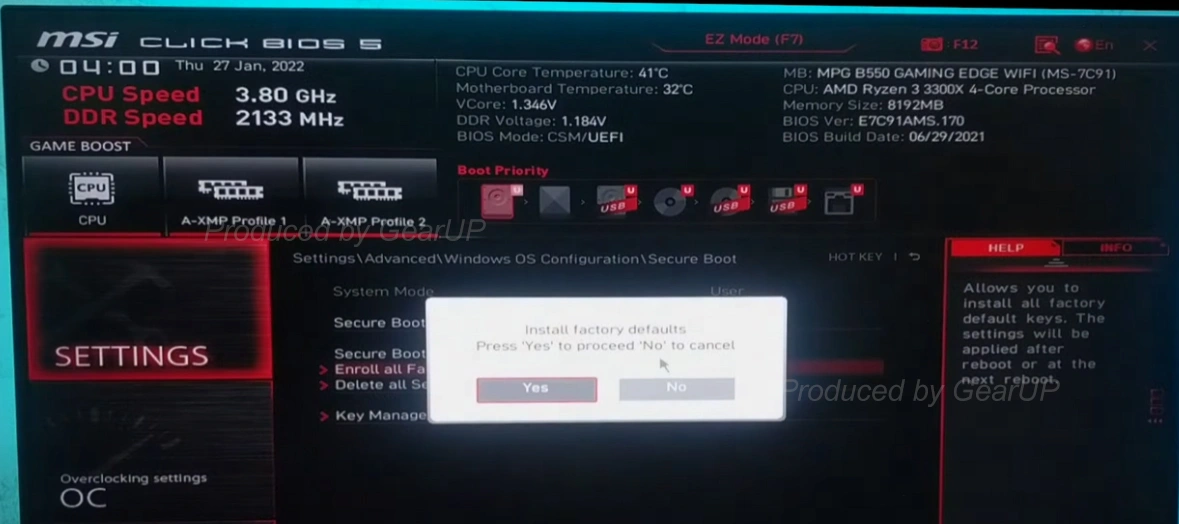

1. First prompt ("install factory defaults"): Choose YES
2. Second prompt ("Reset Without Saving"): Choose NO

Step 6: Finalizing Secure Boot

• Return to Settings tab
• Select Windows OS Configuration → Secure Boot
• Change status to Enabled
• Press F10 to save and restart

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
