MAXSUN Motherboard Secure Boot Guide - 01

This Guide applies to the following motherboards:

• MS-Terminator B760M D4

Step 1: How to Access BIOS Settings

If the system doesn't automatically enter BIOS, manually restart your computer and continuously press the Delete key to access the Maxsun motherboard BIOS interface. Then click Advanced to enter Advanced Mode.

Step 2: How to Enable TPM

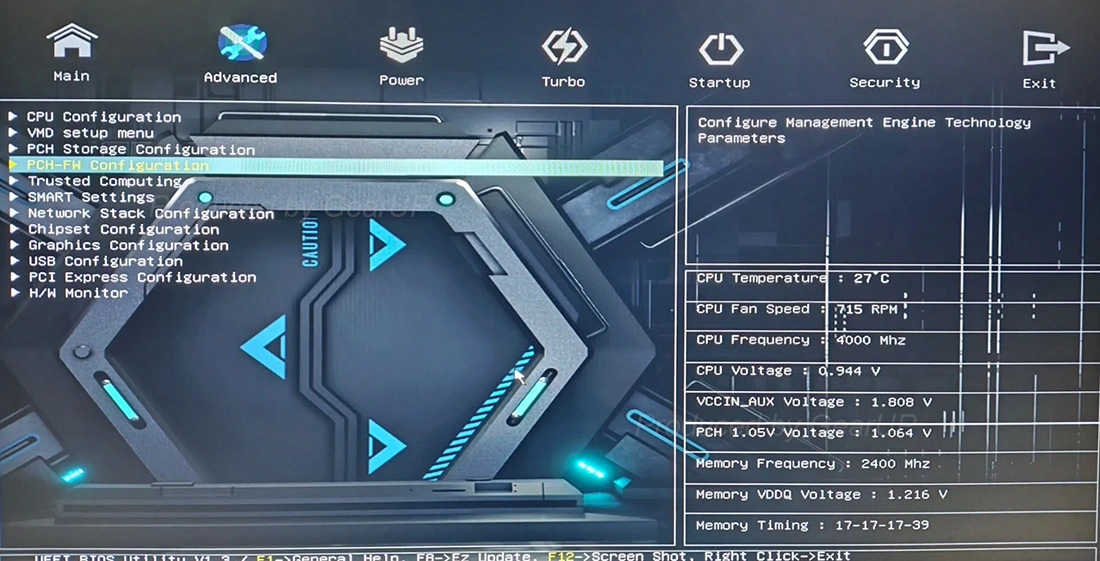

After entering BIOS, click PCH-FW Configuration in the list.

Step 3: How to Enable TPM

Under TPM Device Selection, choose Enable Firmware TPM.

Step 4: How to Enable Secure Boot

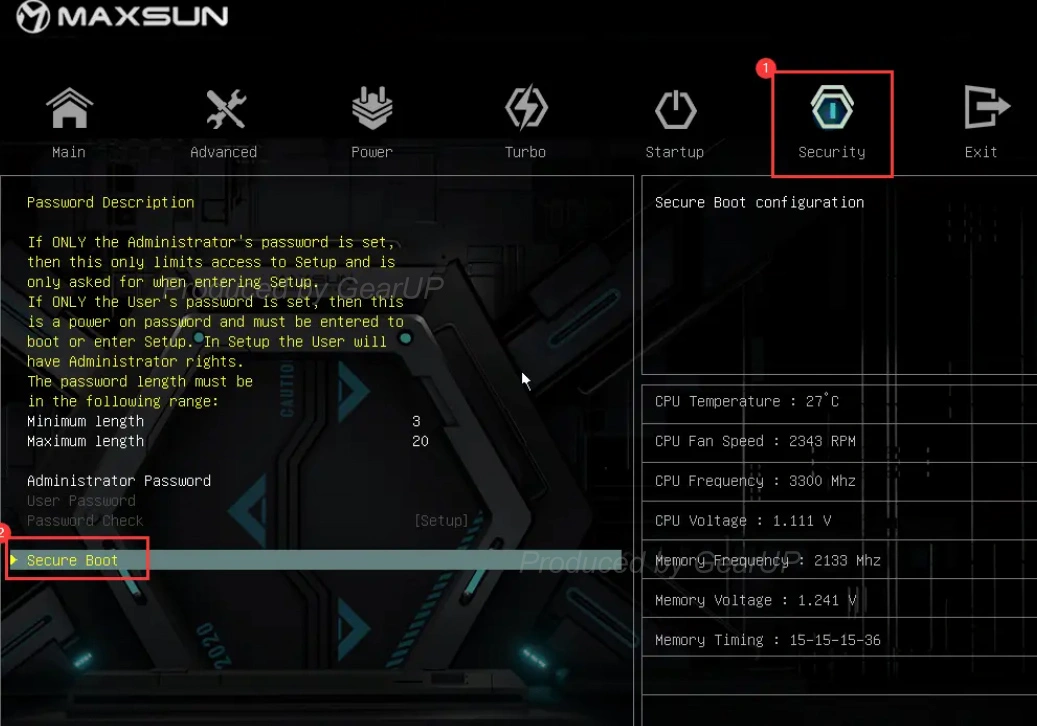

In the top menu bar, click the Security option and select Secure Boot.

Step 5: How to Enable Secure Boot

1. Select Secure Boot and change the setting to Enabled
2. Set Secure Boot Mode to Custom
3. Press F10 to save and restart your computer

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
