GIGABYTE Motherboard Secure Boot Guide - 04

This Guide applies to the following motherboards:

• B760M H DDR4

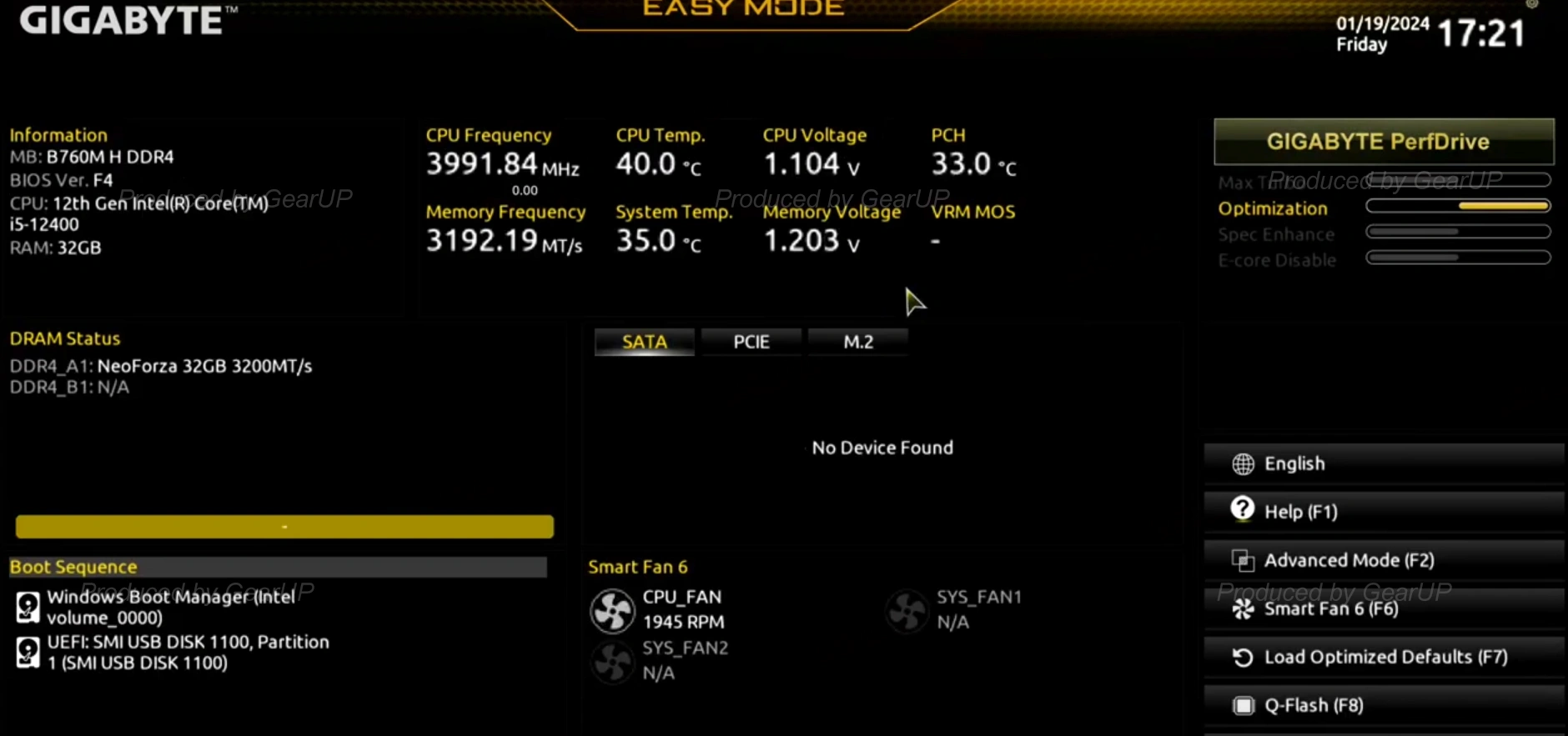

Step 1: How to Enter BIOS Settings

If the system doesn't automatically enter BIOS settings, continuously press the Delete key during computer startup to access the BIOS interface. After entering, click Advanced Mode to proceed.

Step 2: How to Enable TPM

(Skip if TPM is already enabled)

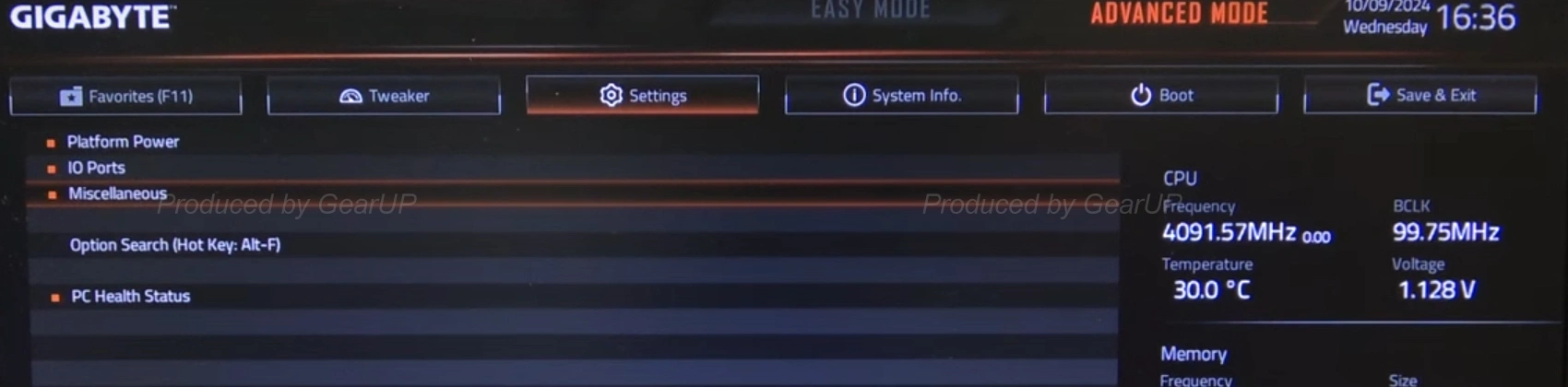

In the top menu bar, switch to the Settings tab, then click Miscellaneous.

Step 3: How to Enable TPM

(Skip if TPM is already enabled)
Click Trusted Computing, locate Device Select, and set it to TPM 2.0.

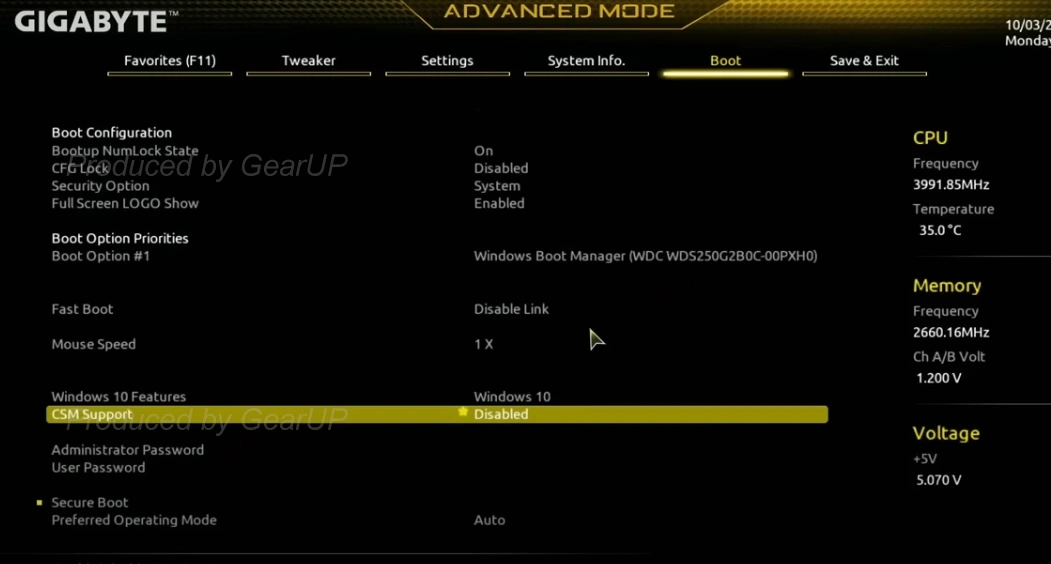

Step 4: How to Enable Secure Boot

In the top menu bar, click Boot, then find CSM Support at the bottom of the Boot section and set it to Disabled.

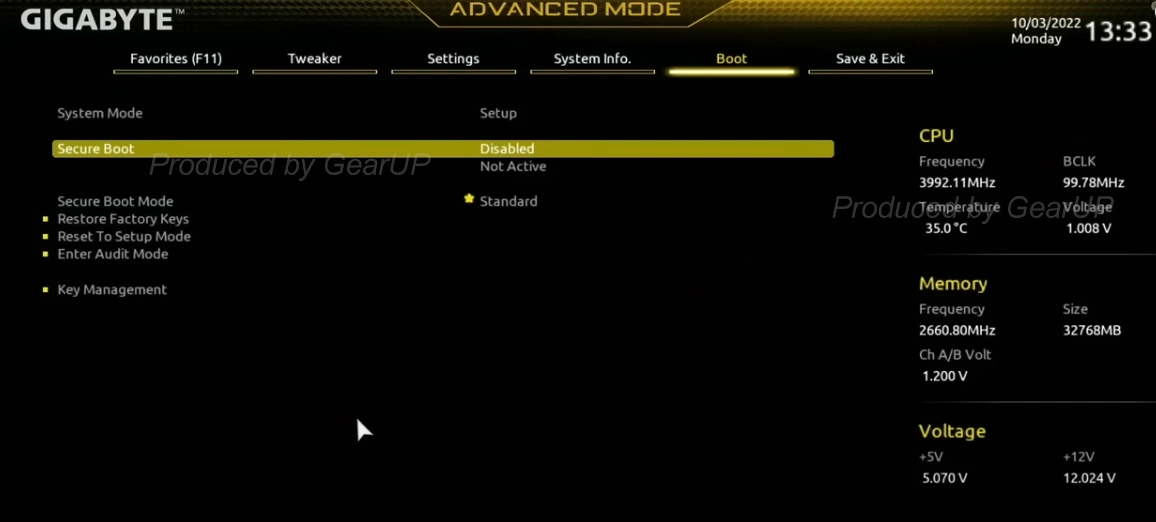

Step 5: How to Enable Secure Boot

Scroll down and click Secure Boot, change the setting from Disabled to Enabled. Press F10 to save and exit BIOS. The computer will automatically restart, and Secure Boot will be successfully enabled.

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
