GIGABYTE Motherboard Secure Boot Guide - 03

This Guide applies to the following motherboards:

• B650M AORUS ELITE AX
• B650M GAMING WIFI

Step 1: How to Enter BIOS Settings

If the system doesn't automatically enter BIOS settings, manually restart your computer and continuously press the Delete key to access the Gigabyte motherboard BIOS interface. Once entered, click the Advanced button at the top to enter Advanced Mode.

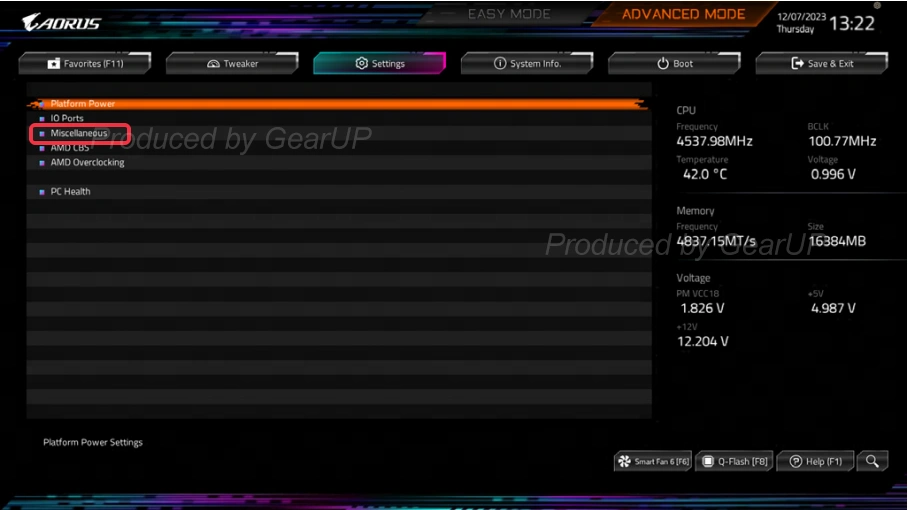

Step 2: How to Enable TPM

(Skip if TPM is already enabled) In the Advanced Mode interface, click Settings in the top menu bar, then select Miscellaneous.

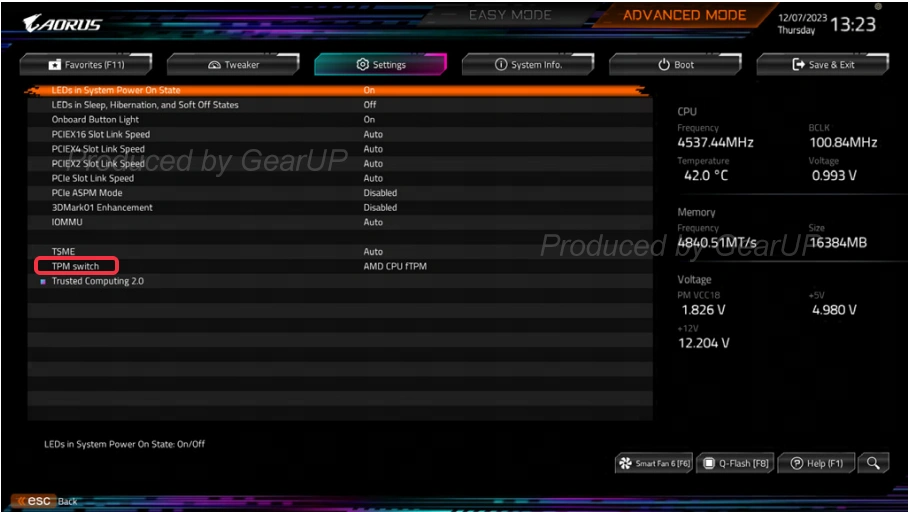

Step 3: How to Enable TPM

(Skip if TPM is already enabled) In the Miscellaneous interface, click TPM switch and select the AMD CPU fTPM option.

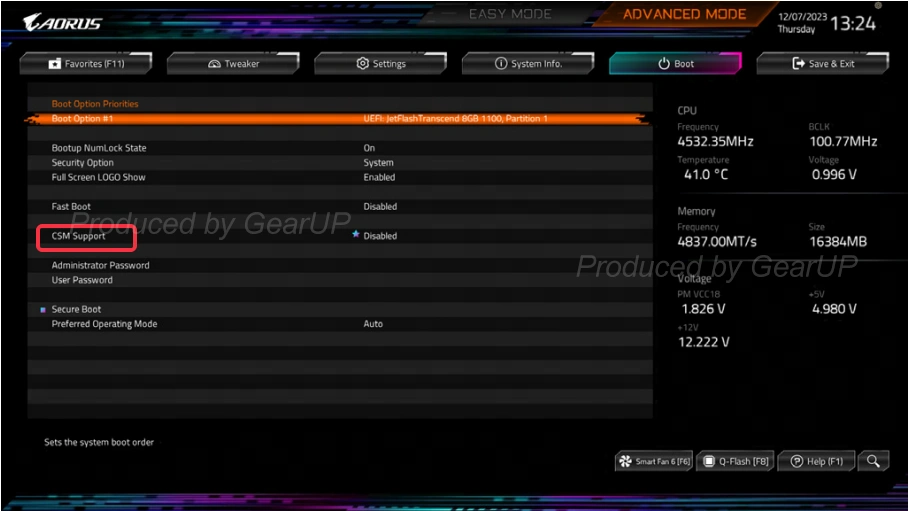

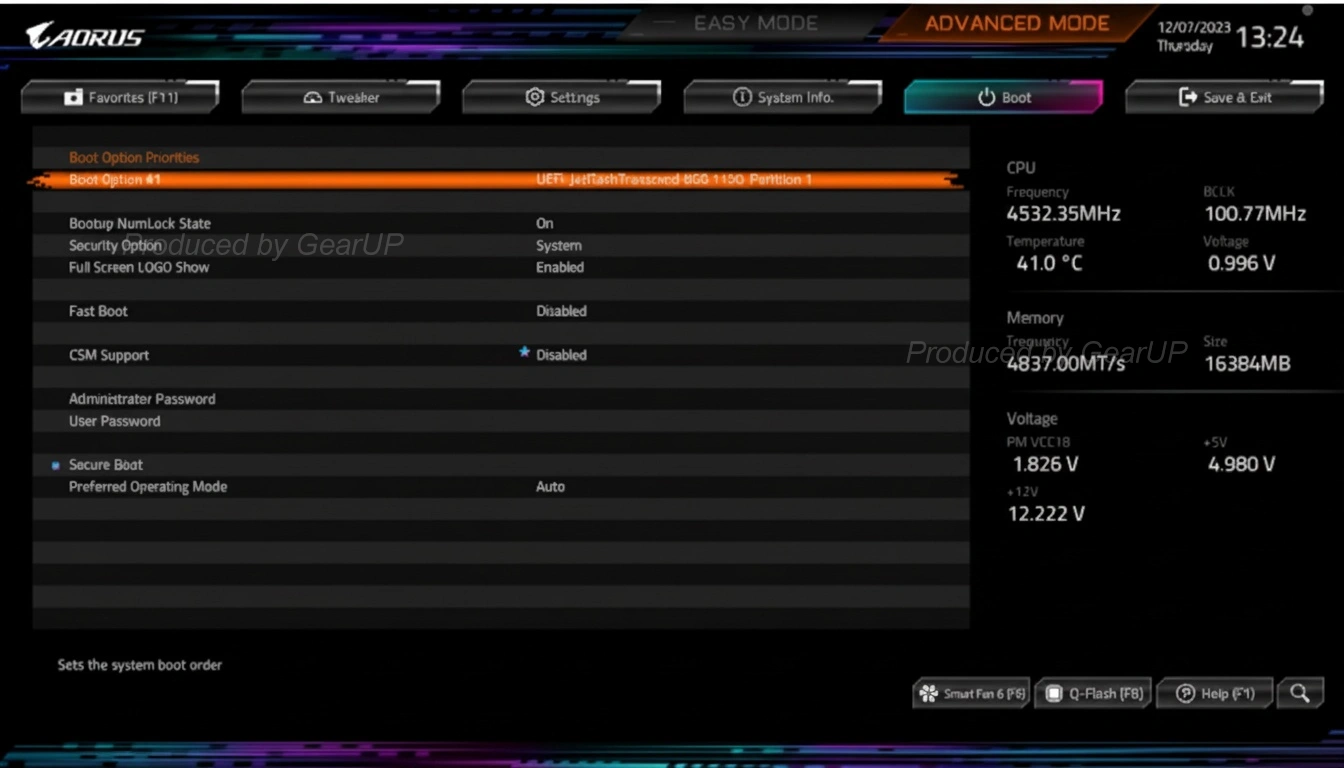

Step 4: How to Enable Secure Boot

In the top menu bar of the list below, click to enter the Boot page, then set the CSM Support option to Disabled.

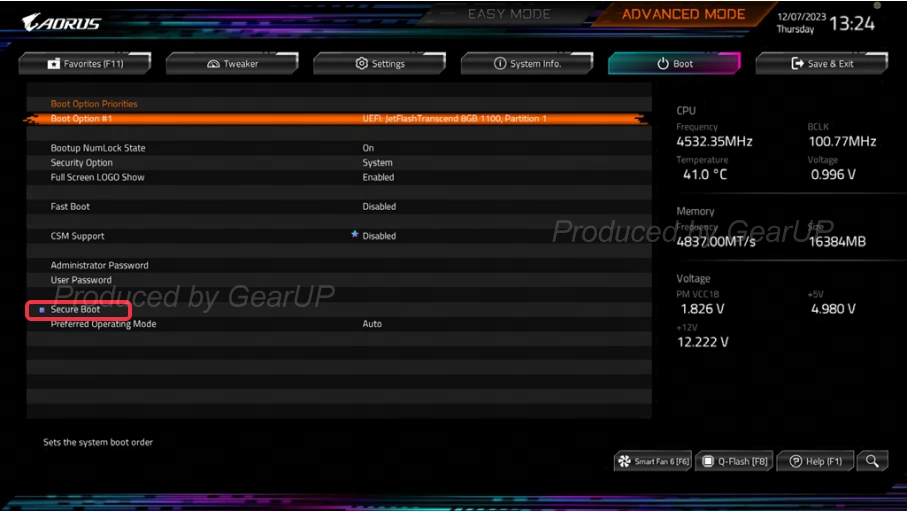

Step 5: How to Enable Secure Boot

On the same page, set Secure Boot to Enabled, then press F10 to save settings and restart your computer.

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
