GIGABYTE Motherboard Secure Boot Guide - 01

This Guide applies to the following motherboards:

• B650M AORUS PRO AX
• Z790M AORUS ELITE AX

Step 1: How to Enter BIOS Settings

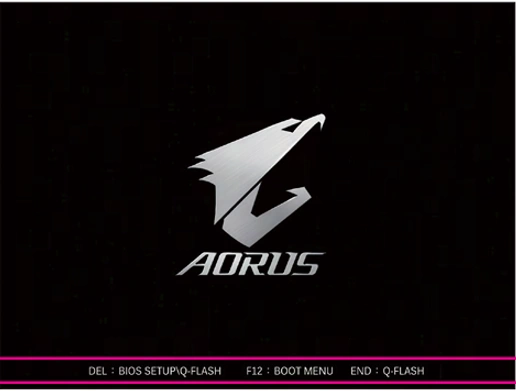

If the system does not automatically enter BIOS settings, manually restart the computer and continuously press the Delete key to access the Gigabyte motherboard BIOS interface. After entering the interface, follow the prompts to click Advanced and enter Advanced Mode.

Step 2: How to Enable TPM

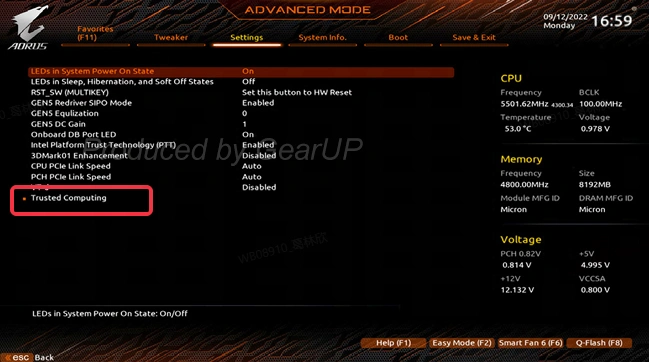

(Skip if TPM is already enabled) In the Advanced Mode interface, click Settings in the top menu bar, then select Trusted Computing and choose Enable.

Step 3: How to Enable Secure Boot

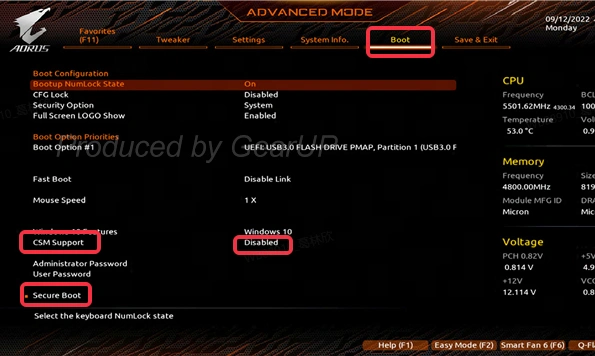

In the top menu bar, click Boot, find CSM Support in the list, and set it to Disabled on the right. Then click Secure Boot in the list and select Enabled. After completing the settings, press F10 to save and restart the computer.

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
