ASUS Motherboard Secure Boot Guide - 21

This Guide applies to the following motherboards:

• ROG STRIX B760-I GAMING WIFI

Step 1: How to Enter BIOS Settings

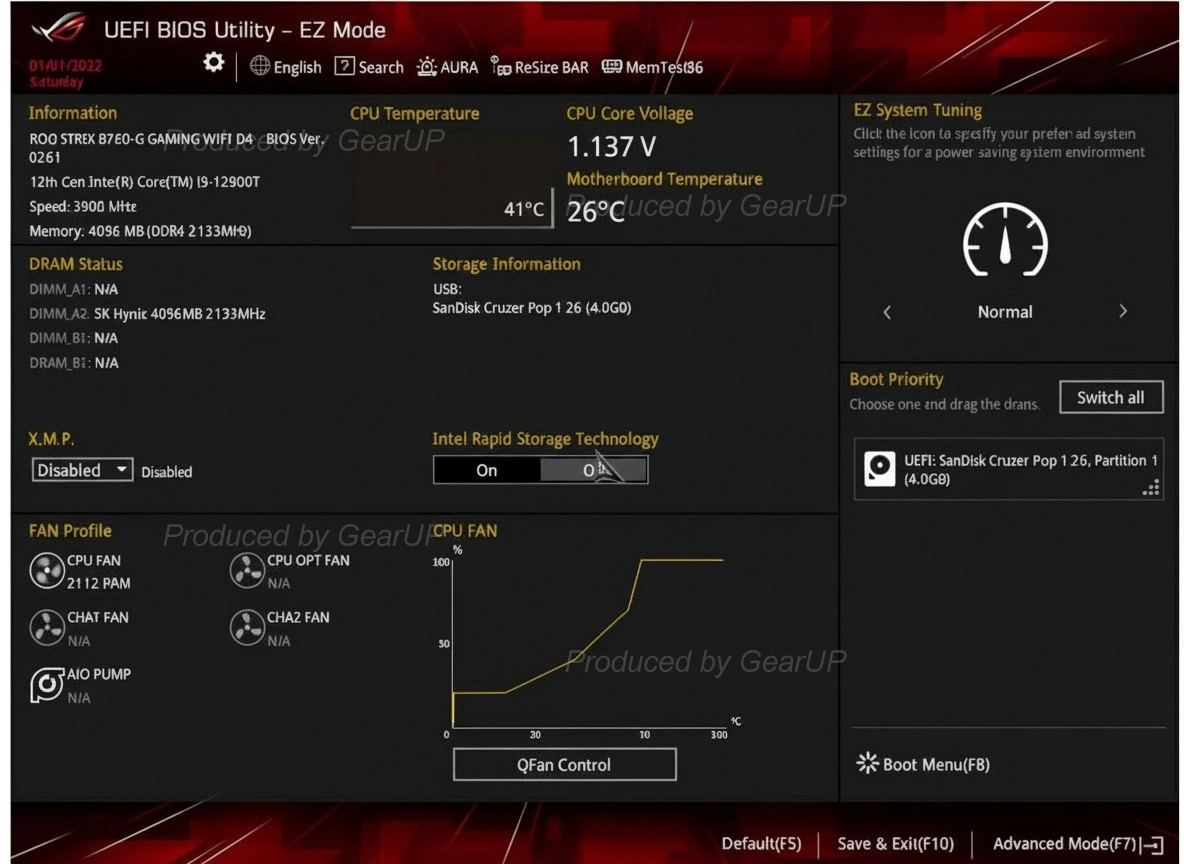

If the system doesn't automatically enter BIOS setup, continuously press the Delete key during computer startup to access the ASUS motherboard BIOS interface. After entering, click Advanced Mode (or press F7) to enter advanced settings.

Step 2: How to Enable TPM

(Skip this step if TPM is already enabled)

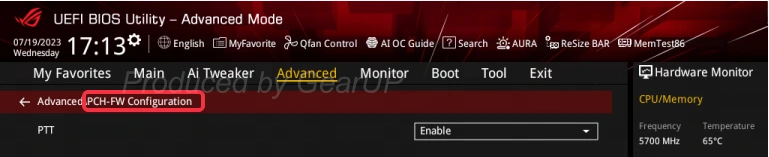

In the menu bar click Advanced, find and enter PCH-FW Configuration, then select "Enable" from the dropdown menu on the right side of "PTT".

Step 3: How to Enable TPM

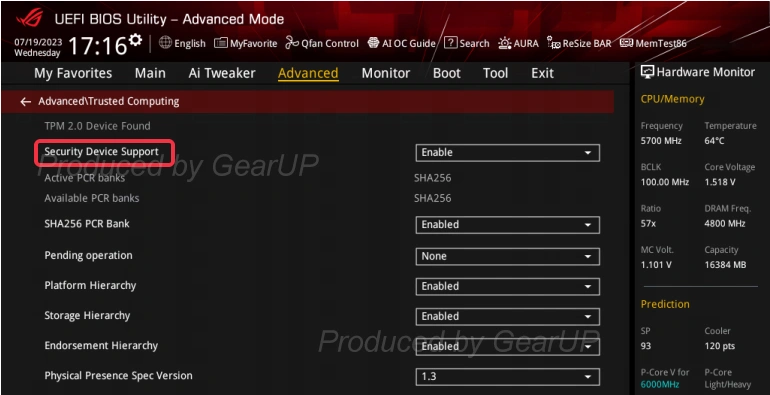

Return to the Advanced page, find and enter Trusted Computing, then select "Enable" from the dropdown menu on the right side of "Security Device Support".

Step 4: How to Enable Secure Boot

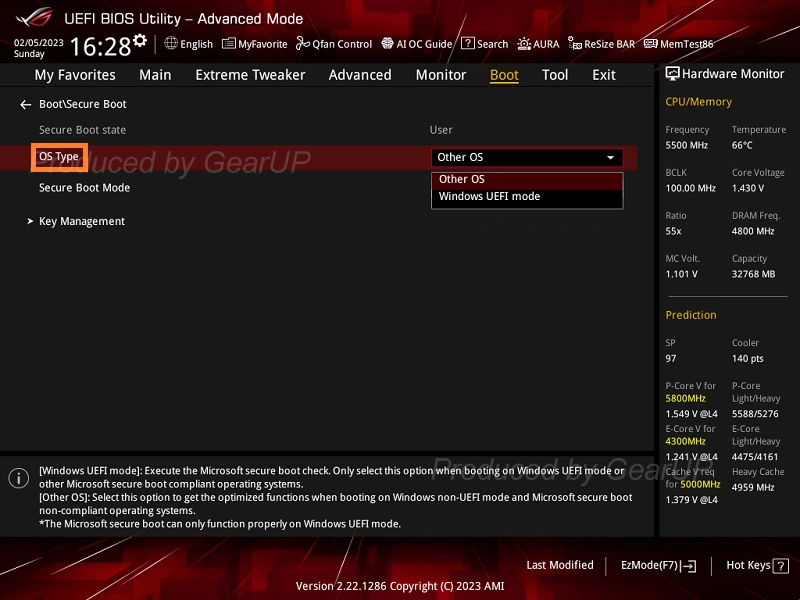

Click Boot in the top menu bar, then enter Secure Boot. Select "Windows UEFI mode" from the dropdown menu on the right side of "OS Type", and press F10 to save and successfully configure Secure Boot.

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
