ASUS Motherboard Secure Boot Guide - 13

This Guide applies to the following motherboards:

• TUF GAMING B560M-PLUS

Step 1: How to Enter BIOS Settings

If the system does not automatically enter BIOS setup, continuously press the Delete key during computer startup to access the ASUS motherboard BIOS interface. After entering the interface, click Advanced Mode to enter the advanced settings.

Step 2: How to Enable TPM

(Skip this step if TPM is already enabled.)

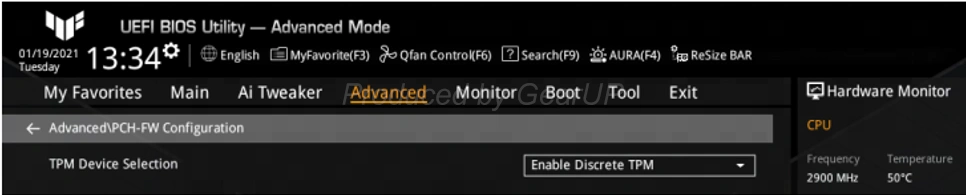

In the menu bar, click Advanced, then select PCH-FW Configuration. From the "TPM Device Selection" dropdown menu on the right, choose Enable Firmware TPM.

Step 3: How to Enable Secure Boot

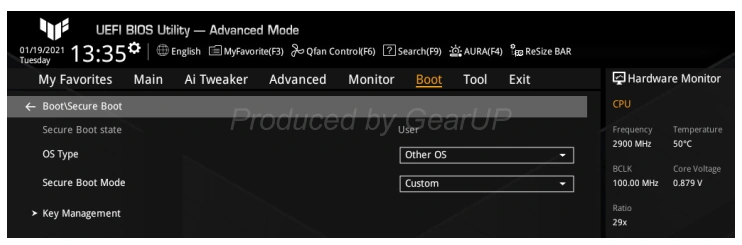

In the top menu bar, click Boot, then select Secure Boot. From the "OS Type" dropdown menu, choose Windows UEFI mode. Press F10 to save settings and successfully enable Secure Boot.

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
