ASUS Motherboard Secure Boot Guide - 01

This tutorial applies to the following motherboards:

• TUF GAMING B650M-PLUS WIFI

Step 1: How to Enter BIOS Settings

If the system does not automatically enter BIOS setup, continuously press the Delete key during computer startup to access the ASUS motherboard BIOS interface. Once inside, click Advanced Mode (or press the F7 key) to enter Advanced Mode.

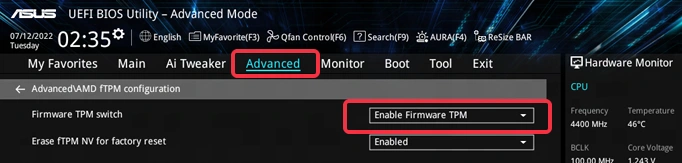

Step 2: How to Enable TPM

(Skip this step if TPM is already enabled.)
In the menu bar, click AMD fTPM Configuration, then open the Firmware TPM Switch dropdown menu and select Enabled Firmware TPM. Press F10 to save the settings.

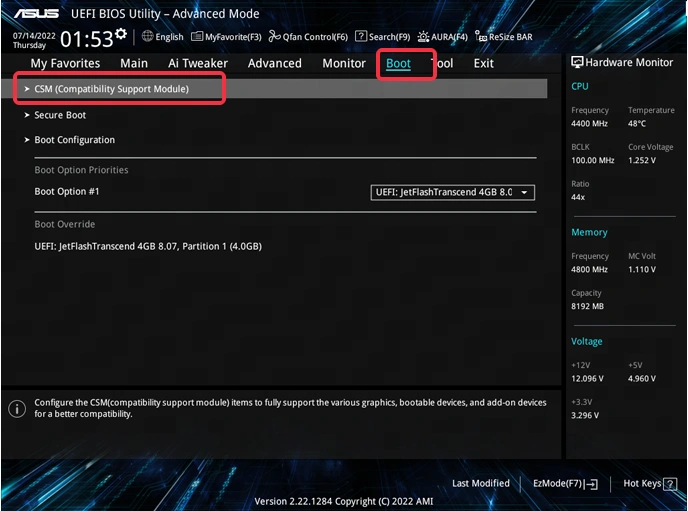

Step 3: How to Enable Secure Boot

In the menu bar, click Boot, then select Launch CSM and set it to Enabled. After configuration, the Boot Device Control option will appear—set this to UEFI only.

Step 4: How to Complete Secure Boot Setup

After completing the above steps, click Secure Boot, select [OS Type], and choose Windows UEFI Mode. Press F10 to save, and Secure Boot will now be successfully configured.

After completing the above settings, please open GearUP and recheck whether Secure Boot has been enabled.
